KS126 Single Drum Vibratory Roller
Compact 12-Ton Design:
With an operating mass of 12,000 kg, the KS126D offers an ideal balance of power and maneuverability, making it perfect for medium-sized road construction, highway maintenance, and urban infrastructure projects.
Powerful Compaction Force:
Generating a centrifugal force of up to 280 kN, this machine delivers deep penetration and rapid density achievement, ensuring efficient compaction of granular soils, gravel, and sub-base materials.
Wide Drum for High Productivity:
A drum width of 2130 mm allows for wider coverage per pass, significantly increasing job site efficiency and reducing overall compaction time.
The 126D Single Drum Vibratory Roller is a versatile and powerful 12-ton machine engineered for high-performance compaction on a wide range of construction projects. It combines a reliable 105 kW Weichai engine with a robust vibration system delivering up to 280 kN of centrifugal force. Featuring a wide 2130 mm drum, dual-stage vibration settings, and excellent maneuverability with a 45% gradeability, the 126D provides the perfect balance of productivity, adaptability, and ease of operation. Ideal for contractors seeking a dependable and efficient solution for sub-base and soil compaction, the KS126D delivers consistent, high-quality results on every job.
Versatile Dual-Stage Vibration:
The selectable dual amplitude (1.85 mm / 0.83 mm) and dual frequency (30 Hz / 34 Hz) settings provide operators with the flexibility to adapt compaction parameters to various material types and layer thicknesses.
Reliable and Efficient Power:

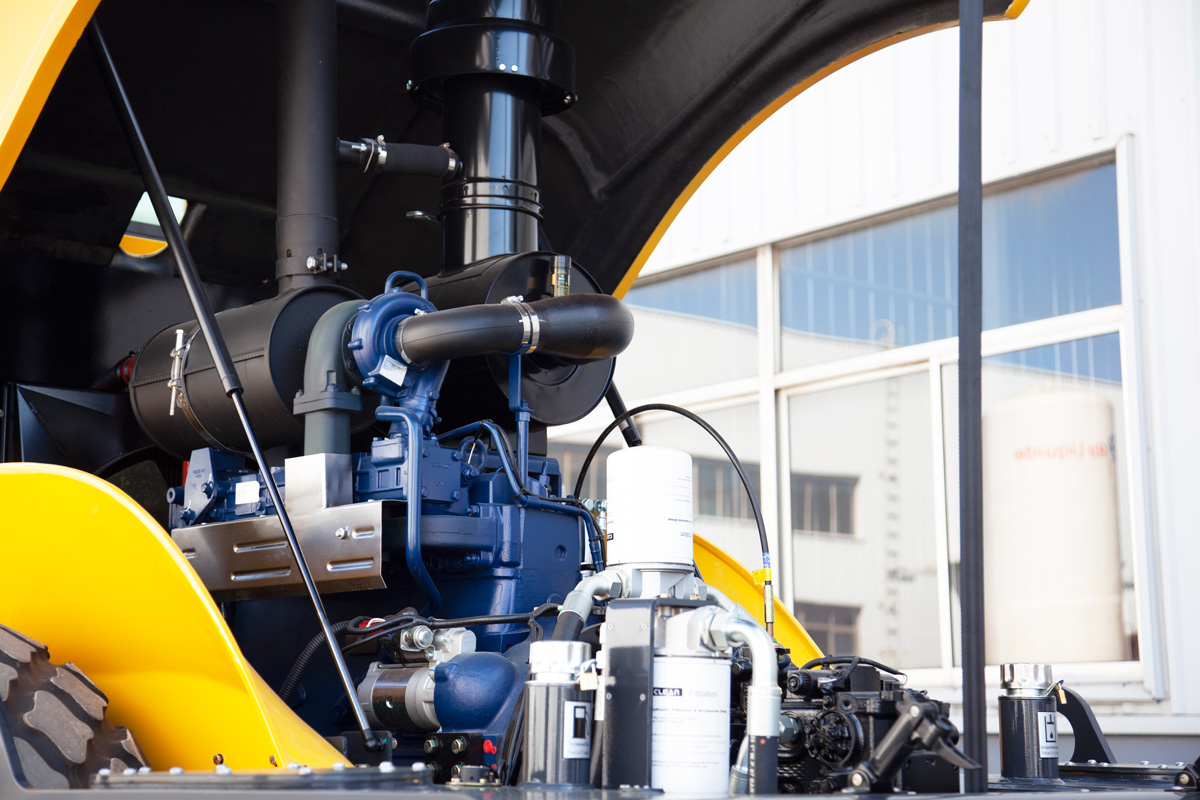

Powered by a proven 105 kW Weichai engine meeting Tier 2 / China Stage II standards, it ensures dependable performance, easy maintenance, and excellent fuel economy on the job site.
Excellent Maneuverability:
A turning radius of just 6500 mm allows for easy handling in confined spaces and around obstacles, making it highly effective on complex job sites with limited working areas.
Strong Gradeability for Challenging Terrain:
A 45% climbing capability ensures the roller can operate confidently on slopes and uneven ground, maintaining traction and stability in demanding conditions.
126D Single Drum Vibratory Roller detail table
| 126D Single Drum Vibratory Roller | |
|---|---|
| Basic Specifications | |
| Model | 126D |
| Operating Mass (kg) | 12000 |
| Dimensions (L × W × H) (mm) | 5900 × 2290 × 3150 |
| Vibration System | |
| Static Linear Load (N/cm) | 322 |
| Drum Width (mm) | 2130 |
| Drum Diameter (mm) | 1533 |
| Amplitude (mm) | 1.85 / 0.83 |
| Vibration Frequency (Hz) | 30 / 34 |
| Centrifugal Force (kN) | 280 / 162 |
| Performance | |
| Speed Range (km/h) | 0-9 |
| Climbing Capability (%) | 45 |
| Turning Radius (mm) | 6500 |
| Engine System | |
| Engine Brand | Weichai |
| Engine Power (kW) | 105 |
| Emission Standard | Tier 2 / China Stage II |
