mini digger excavator
Ultra-Lightweight & Space-Saving Design

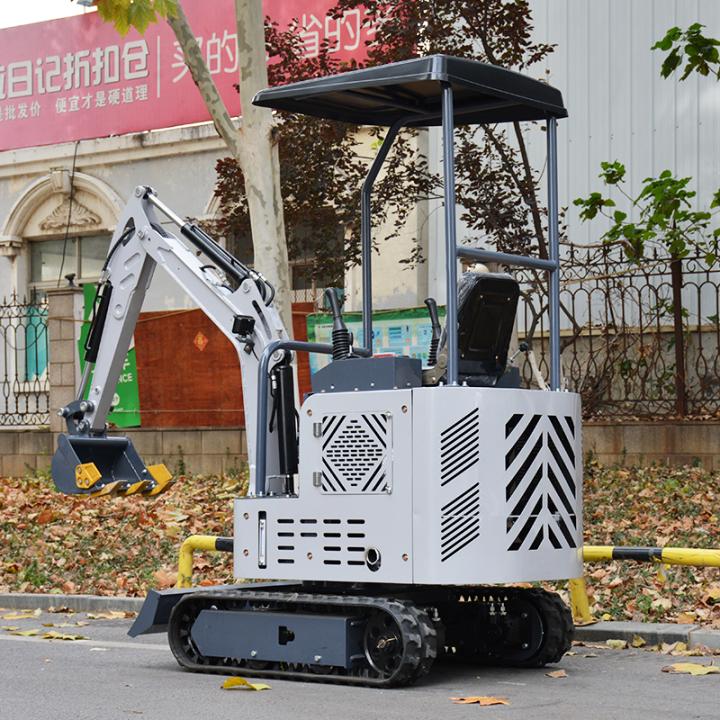

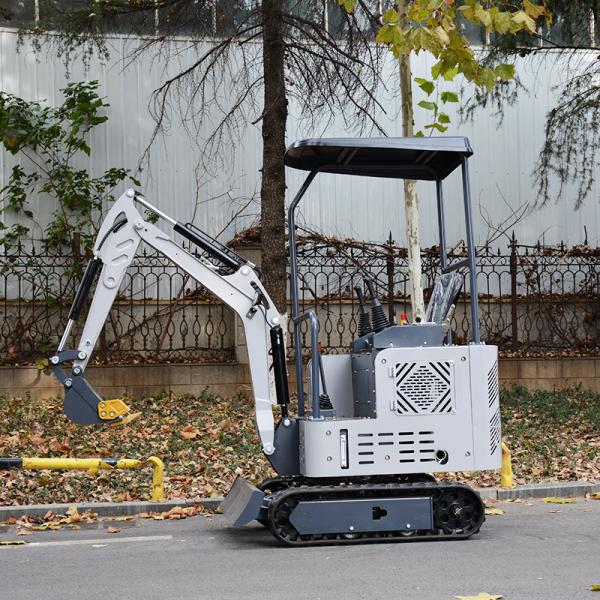

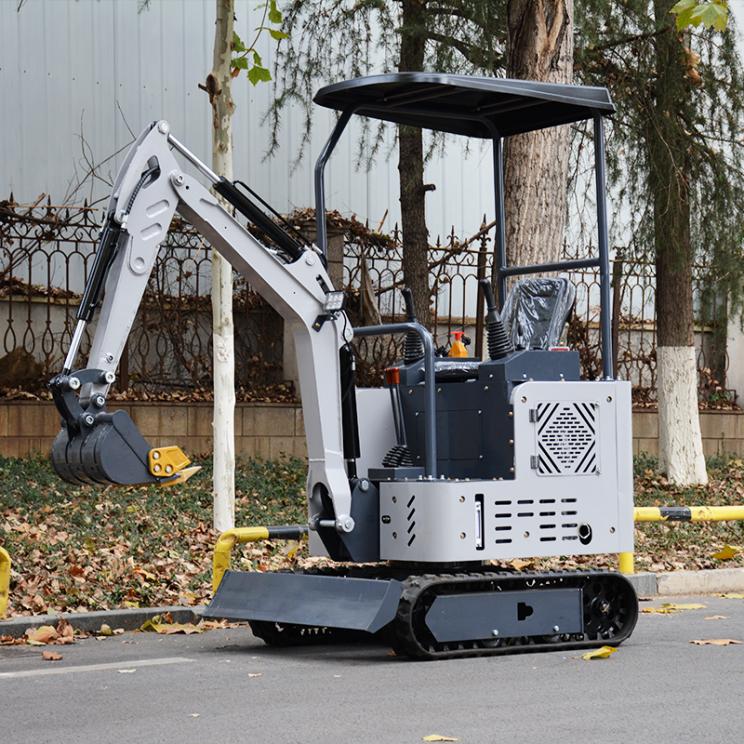

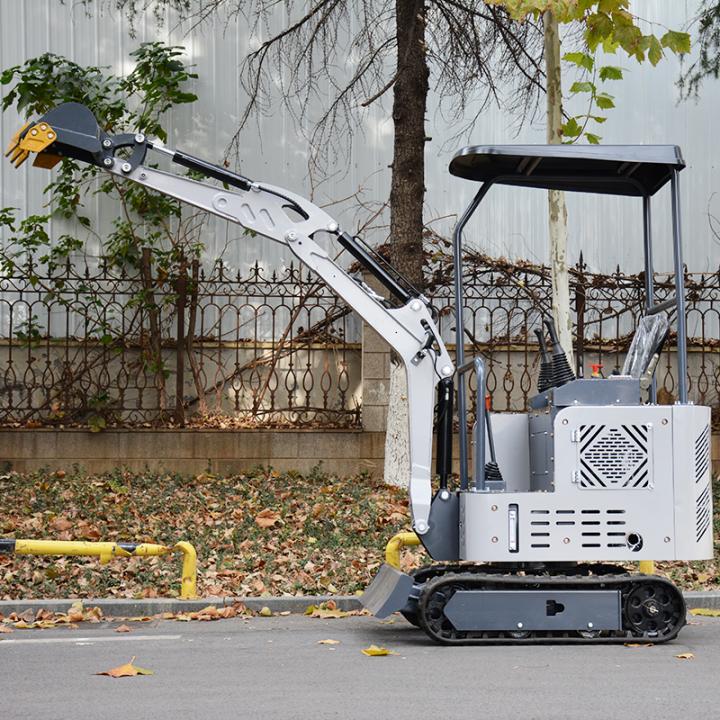

Weighing only 1650KG with a compact overall dimension of 2800mm (L) × 1100mm (W) × 2250mm (H), this 1.7-ton mini excavator is perfectly engineered for ultra-tight spaces. It easily navigates through narrow residential pathways, indoor construction zones, and urban backyards where larger machinery cannot access, making it the ideal choice for basement demolition, indoor renovation, and small-scale landscaping projects.
Triple Engine Options for Maximum Versatility
Boasting flexible power choices including LaiDong B&S (26HP), LaiDong (13.5HP), and Kubota (14HP), the excavator caters to diverse workload demands. The high-power LaiDong B&S variant delivers robust output for heavy digging and site preparation, while the Kubota engine offers exceptional fuel efficiency and reliability for light-duty gardening and trenching tasks, ensuring compliance with various market regulations and user preferences.
The 1.7-ton mini excavator (1650KG operating weight) is an ultra-compact, highly versatile construction machine designed for light-to-medium duty applications in tight spaces. Powered by fuel-efficient Kubota or high-performance LaiDong/B&S engines, it delivers reliable power with economical operation. Its advanced load sensing hydraulic system, impressive working range, and near-zero tail swing design ensure precise, safe, and efficient performance in indoor renovation, landscaping, and small construction projects. With robust terrain adaptability, a multi-functional dozer blade, and low maintenance requirements, this excavator is a cost-effective and reliable solution for homeowners, small contractors, and landscaping professionals seeking a compact yet powerful workhorse.
High-Performance Load Sensing Hydraulic System
Equipped with a premium load sensing hydraulic system featuring a rated working pressure of 22MPa and a maximum flow rate of 35L/min, the machine provides precise and responsive control over all excavating functions. The system intelligently adjusts hydraulic flow and pressure based on the actual workload, minimizing energy waste, reducing fuel consumption, and delivering smooth operation for fine grading, pipe laying, and precision digging applications.
Impressive Working Range for a Mini Excavator
Despite its lightweight frame, the excavator offers an extensive working range: a maximum digging height of 3100mm, maximum dumping height of 2050mm, maximum digging depth of 1950mm, and a maximum digging radius of 3150mm. This wide reach enables it to handle excavation, material loading, and ground leveling tasks efficiently, providing strong performance that exceeds many competitors in its weight class.
Zero-Tail Swing Radius for Safe Maneuverability
With a minimum swing radius of 900mm and a matching tail swing radius, the machine features a near-zero tail overhang design. Operators can rotate the upper structure freely in confined spaces without the risk of colliding with walls, pillars, or other obstacles, significantly enhancing operational safety and flexibility in crowded or enclosed job sites.
Robust Dozer Blade for Multifunctional Use
The integrated dozer blade supports a maximum lifting height of 200mm and a maximum digging depth of 270mm, providing excellent site leveling capability, debris clearing, and backfilling assistance. It also increases the excavator’s overall stability during digging operations on uneven terrain, making it a versatile tool for both excavation and site preparation.
Exceptional Terrain Adaptability
Boasting a 45° climbing ability, travel speed of 2.2-4.3 KM/h, and a 0.035m³ bucket capacity, the excavator excels on diverse job sites. It easily navigates steep slopes, rough terrain, and soft soil, while the powerful bucket ensures efficient digging, trenching, and material loading for a wide range of small-scale construction, agricultural, and landscaping applications.
Cost-Effective Operation & Low Maintenance
With a 18L fuel tank capacity, the excavator offers long working hours between refuels, reducing downtime and operational costs. Its straightforward design, standardized components, and protected hydraulic lines simplify daily maintenance, lowering overall repair expenses and ensuring high reliability for continuous use in small contractor and residential settings.
