12-ton fully hydraulic double drum roller

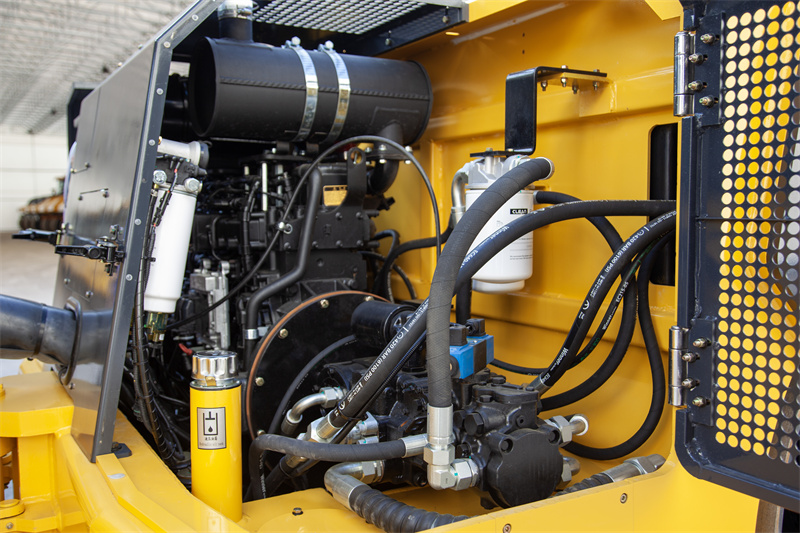

High‑power Cummins engine:
119 kW reliable power output ensures strong performance and long service life.
Imported hydraulic components:
Equipped with Danfoss piston pumps and motors for stable, efficient, and low‑failure operation.
Dual independent vibration:
Separate control of front and rear vibration improves compaction uniformity and efficiency.
Dual frequency & dual amplitude:
Flexible matching for base, subbase, and asphalt layers to meet diverse project needs.
The D106HF Tandem Vibratory Roller integrates a high‑performance Cummins engine, imported hydraulic system, dual independent vibration, and advanced safety features to deliver professional, efficient, and reliable compaction performance. With dual amplitude, dual frequency, excellent maneuverability, and superior operator comfort, it is perfectly suited for highway paving, municipal roads, parking lots, airports, and other infrastructure projects. Combining high efficiency, durability, and ease of operation, the D106HF is an ideal choice for high‑quality asphalt compaction and modern road construction demands.
Strong climbing ability:
30% grade capability ensures stable operation on ramps and sloped sites.
Large fuel capacity:
200L fuel tank supports long continuous working hours and reduces refueling frequency.
Articulated steering with optional crab walk:
Excellent maneuverability for tight bends, intersections, and curb work.
High ground clearance:
440 mm minimum clearance reduces bottom scraping and improves off‑road capability.
Wide compaction width:

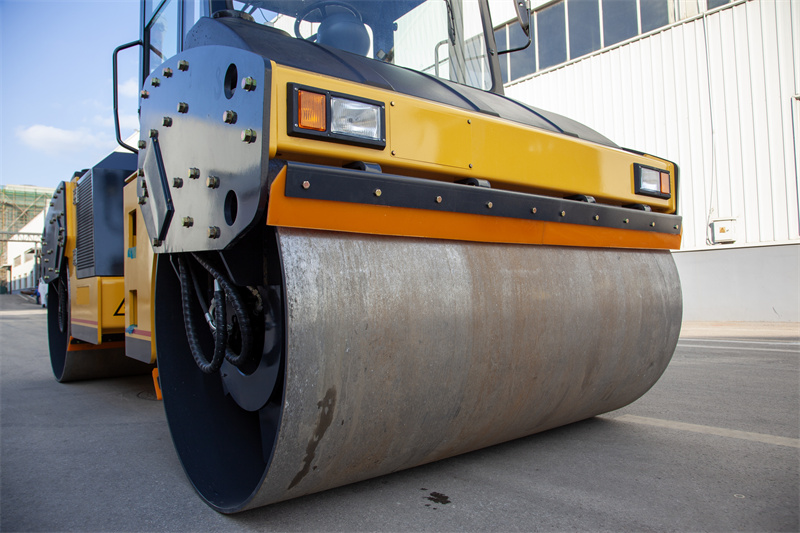

2080 mm drum width increases single‑pass coverage and boosts construction efficiency.
Compliant global safety design:
Full set of safety devices meets international standards for construction machinery.
11 Ton Tandem Vibratory Roller Detail Table
| 11 Ton Tandem Vibratory Roller | |
|---|---|
| Basic Specifications | |
| Model | D106HF |
| Operation Weight (kg) | 10600 |
| Dimensions (L × W × H) (mm) | 4920 × 2250 × 3200 |
| Minimum Ground Clearance (mm) | 440 |
| Vibration System | |
| Static Linearity (Front/Rear) (N/cm) | 249 / 249 |
| Drum Width (mm) | 2080 |
| Vibration Frequency (Hz) | 42 / 50 |
| Amplitude (mm) | 0.8 / 0.4 |
| Centrifugal Force (kN) | 120 × 2 / 80 × 2 |
| Performance | |
| Walking Speed (km/h) | 0-11 |
| Climbing Capability (%) | 30 |
| Steering Angle | ±40° |
| Turning Radius (mm) | 6000 |
| Engine System | |
| Engine Brand | Cummins |
| Rated Power (kW) | 119 |
| Fuel Tank Capacity (L) | 200 |
