13 Ton Fully hydraulic double drum double drive road roller

The 136HF Tandem Vibratory Roller is a high-performance 13-ton compaction machine designed for modern road construction. It features a heavy-duty structure, SAUER hydraulic system, imported high-quality components, and dual-frequency dual-amplitude vibration, ensuring strong compaction force, high efficiency, and outstanding reliability. With articulated steering, crab walk, built-in wet brakes, and an ergonomic cab with excellent visibility, it combines safety, flexibility, and ease of operation. Ideal for highways, airports, municipal roads, and infrastructure projects, the 136HF delivers stable performance, long service life, and superior compaction quality, making it a top choice for professional construction customers worldwide.

13-ton heavy-duty structure:

Higher operation weight delivers stronger compaction effect and better density for major road projects.

Higher static linearity (299 N/cm):

Uniform pressure distribution ensures smoother pavement and higher compaction quality.

Stronger centrifugal force up to 150 kN:

Provides deeper and more efficient compaction for base and subbase layers.

Optimized dual amplitude (0.88 / 0.4 mm):

Better matching for different materials and layers, improving versatility.

Cummins Tier 3 engine:

 Reliable power, low fuel consumption, and compliant with global emission regulations.

Imported piston pumps & motors:

Stable hydraulic system with high efficiency, low failure rate, and long service life.

Integrated wet multi-disc braking system:

Safe, maintenance-free, and highly reliable even under heavy load.

Unique crab walk function:

Enables parallel movement for edge compaction and narrow-space operation.

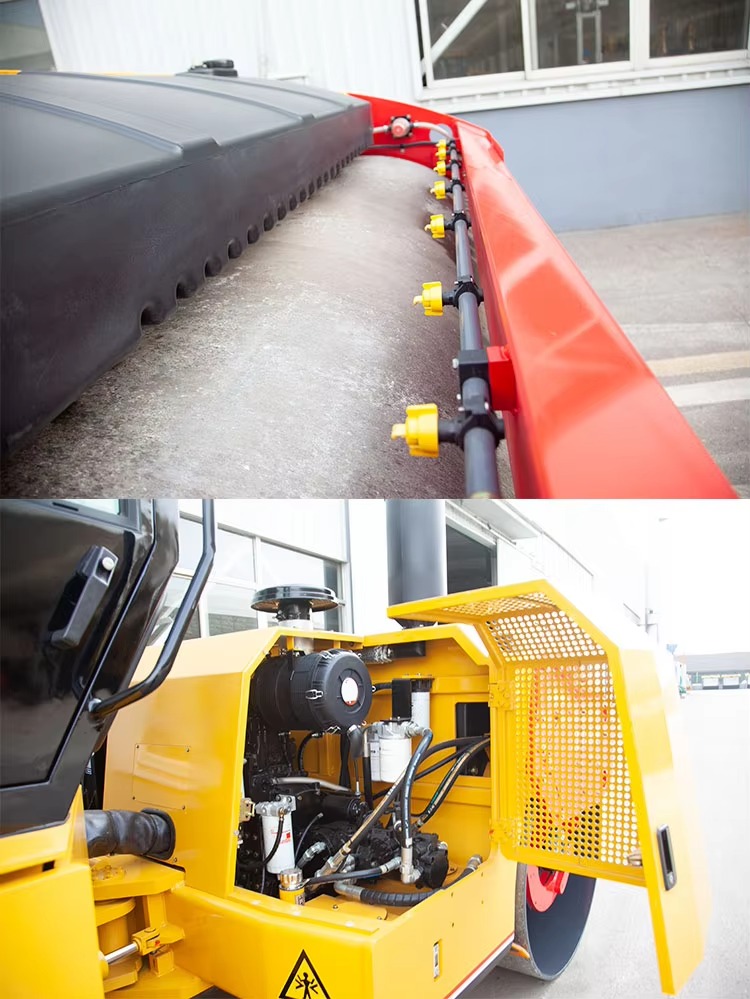

Electronically controlled water spray:

Adjustable flow rate, uniform distribution, and low water consumption.

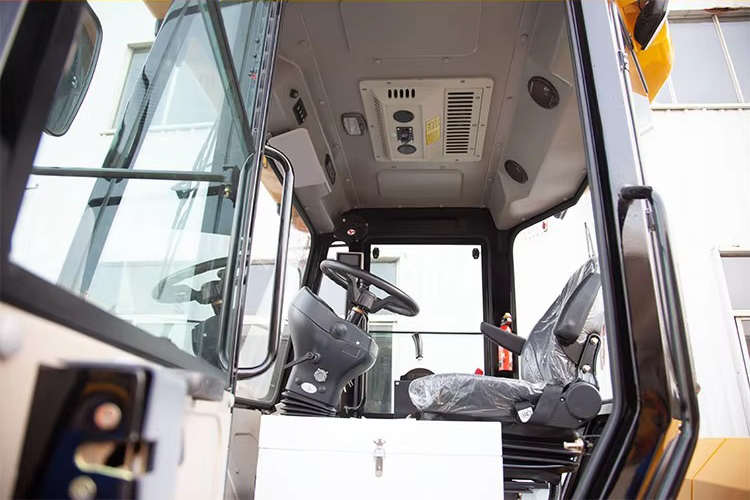

Excellent operator visibility:

Front-mounted console and streamlined body provide clear view of drum edges and working area.

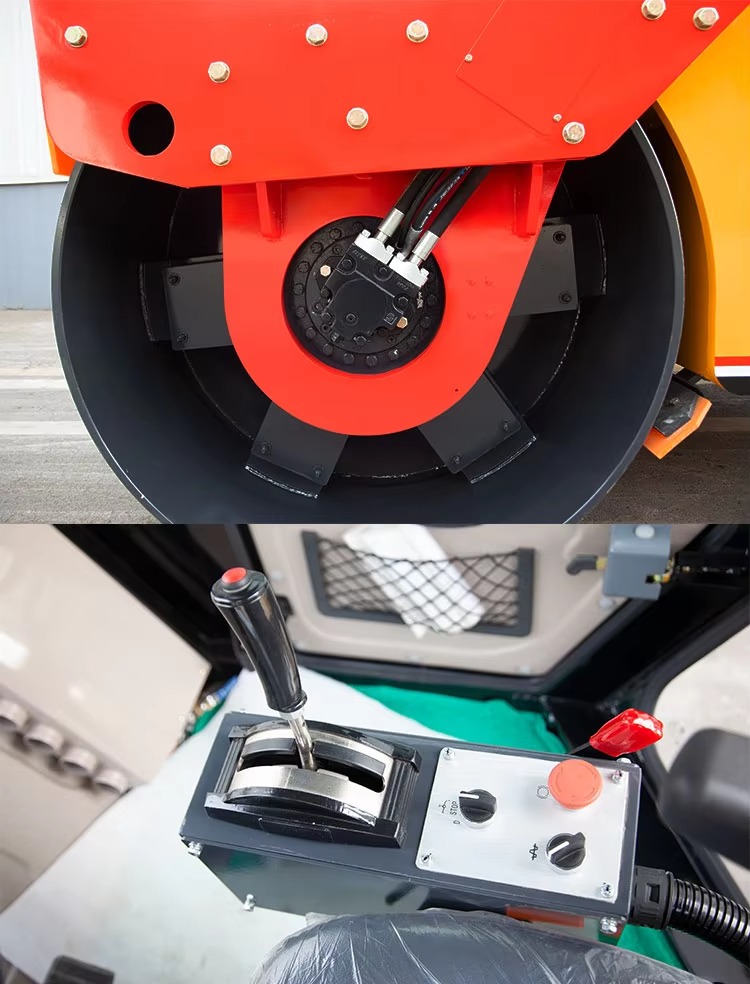

The 136HF 13-ton tandem vibratory roller is equipped with a reliable Cummins QSB4.5 diesel engine and imported Danfoss piston pumps and motors for both travel and vibration systems. It offers multiple amplitude and frequency settings, with all vibration controls conveniently located on the instrument panel. The machine features chamfered drum edges, excellent drum edge visibility, a heavy‑duty center hitch, and superior shock isolation systems. Independent drum vibration, great side and curb clearance, a multi‑filtered water spray system, and dual drum hydrostatic drive ensure high‑quality compaction and smooth operation. It comes complete with front and rear lights and a full set of standard safety equipment including ROPS, seat belt, safety chains, turn signals, brake lights, horn, backup alarm, electric parking brake with interlock, and foot brake. Optional articulated steering with crab device is available for enhanced maneuverability, making it a high‑performance and dependable choice for road construction projects.

13 Ton Double Drum Road Roller  Detail Table
