HYDRAULIC TANDEM DRUM VIBRATION ROLLERS
304 N/cm High Static Linearity: Uniform Compaction for High-Grade Pavement
The 138HF features 304 N/cm front/rear static linearity, ensuring uniform pressure across its 2130 mm drum. It avoids uneven compaction, meets high-grade asphalt paving standards, and delivers consistent results for both surface and base layer compaction.
160 kN×2 Strong Centrifugal Force: Efficient Deep Compaction
With 160 kN×2 centrifugal force, the 138HF achieves deep, efficient compaction. It penetrates roadbeds quickly, reduces compaction passes, shortens construction cycles, and ensures pavement bearing capacity and stability.
Intelligent LCD Display & Diagnostic Alarms: Real-Time Monitoring & Fault Prevention
The large LCD screen displays real-time operating data, while sound and light alarms prompt maintenance. It avoids faulty operation, prevents equipment damage, and reduces downtime and maintenance costs.

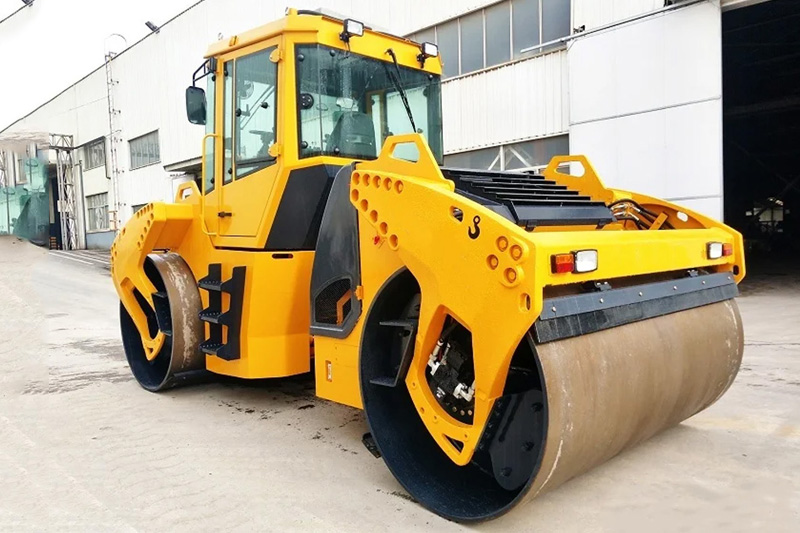

The 138HF Tandem Vibratory Roller is a high-performance 13-ton compaction machine powered by a reliable 119 kW Cummins Tier 3 engine and equipped with a high-pressure closed hydraulic system from Danfoss. It features a robust four-point support vibration structure, dual-frequency dual-amplitude system, superior climbing ability, and triple-safe braking. With an intelligent monitoring display, durable vibration bearings, and an efficient electrically controlled sprinkler system, the machine achieves outstanding compaction quality, operational safety, and long-term reliability. Ideal for highways, airports, municipal roads, and high-standard infrastructure projects, the 138HF combines power, efficiency, and intelligence to meet the most demanding construction requirements.
Hydraulic system
The closed hydraulic system is composed of Danfoss high-pressure plunger pump and motor, ensuring that the roller has good driving performance and high climbing ability. Hydraulic continuously variable transmission ensures operation at the most suitable speed under different working conditions. Both economically viable and efficient.
Vibration wheel structure
The vibration wheel adopts a four point support inner cylinder vibration chamber structure, with high strength and good rigidity, equipped with impact resistant reinforced imported vibration bearings to ensure bearing performance; The carefully designed bearing seat with lubricating oil passage has good lubrication and heat dissipation performance. Even under strong alternating loads, it can still ensure the excellent performance and long-term reliability of the vibration bearing, ensuring efficient construction efficiency.
Wheel reducer
The braking system consists of multiple wet brakes on the vibrating wheel reducer and static hydraulic brakes on the closed hydraulic system. It has three functions: driving, parking, and emergency,ensuring safe and reliable driving.

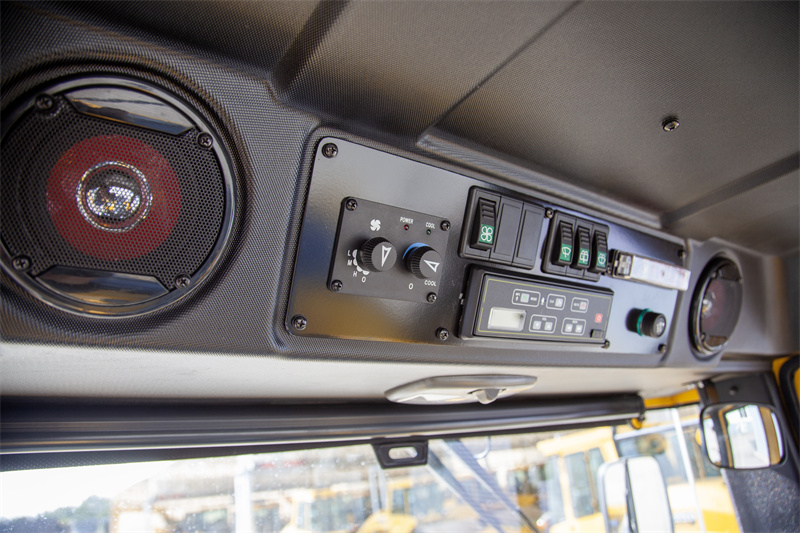

Data display system

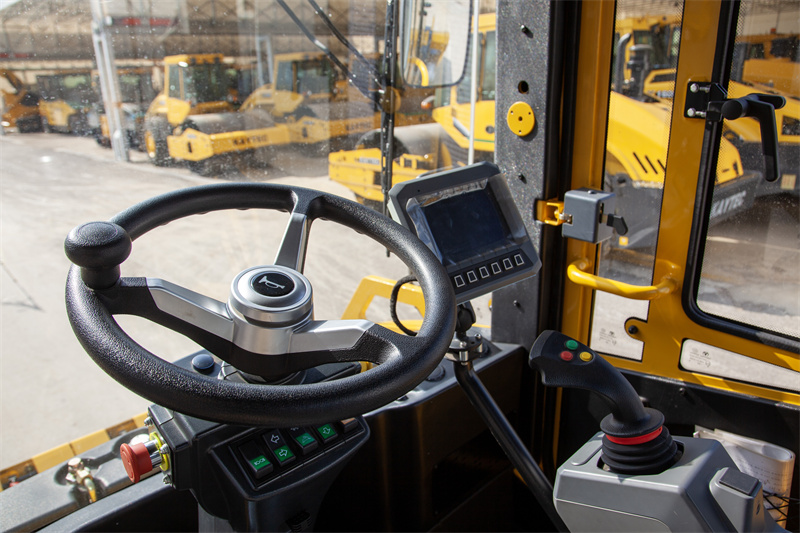

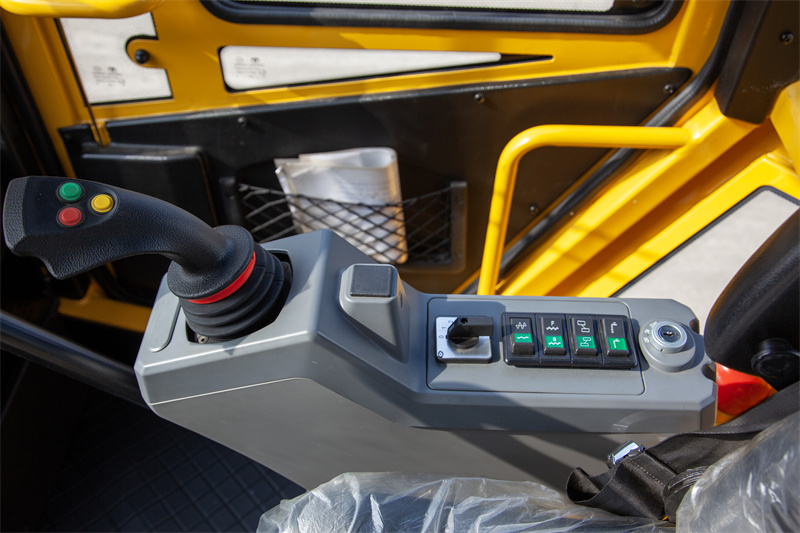

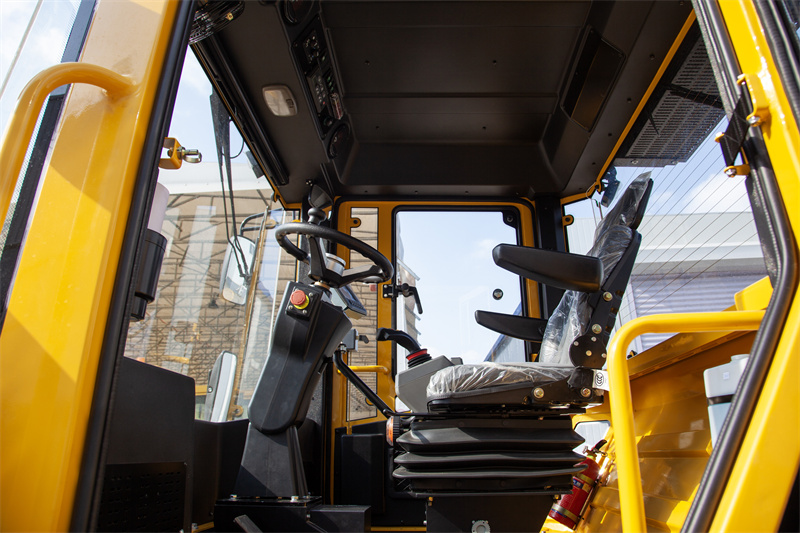

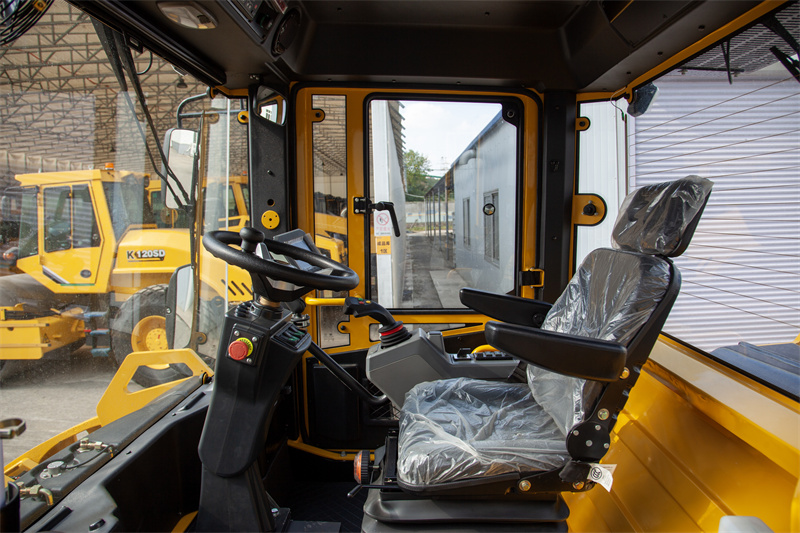

The sound and light alarm device on the dashboard can provide maintenance and repair information at any time, avoiding equipment operation with "disease" and preventing equipment damage. The ultra large color LCD screen displays various machine information in real-time, making operation simple and convenient.By placing the throttle handle and forward/backward handle to the right, the comfort of operation is improved.
Vibration system
The closed vibration system is composed of Danfoss vibration pump and vibration motor, with dual frequency and dual amplitude,scientifically and reasonably configured static line load and excitation force, ensuring effective compaction of different types of materials and thicknesses of paving layers.
Density tester
Choose a compactness detector to directly observe the compaction quality in the cab
Edge cutter
Optional edge cutter for road edge cutting operations.
Engine
Cummins engine, with a power of 119kW, has strong power, fast starting, durability, and fuel economy
Sprinkler system
Large capacity water tank, ensuring continuous construction of the whole machine, three-stage filtration, electrically controlled pressure spraying water system, with the option to spray water continuously or intermittently.
14Ton Tandem Vibro Roller Detail Table
| 138HF Tandem Vibratory Roller | |
|---|---|
| Basic Specifications | |
| Model | 138HF |
| Operation Weight (kg) | 13000 |
| Dimensions (L × W × H) (mm) | 4790 × 2300 × 3300 |
| Vibration System | |
| Static Linearity (Front/Rear) (N/cm) | 304 / 304 |
| Drum Width (mm) | 2130 |
| Vibration Frequency (Hz) | 42 / 50 |
| Amplitude (mm) | 0.9 / 0.45 |
| Centrifugal Force (kN) | 160 × 2 / 100 × 2 |
| Performance | |
| Walking Speed (km/h) | 0-11 |
| Climbing Capability (%) | 40 |
| Steering Angle | ±17° |
| Engine System | |
| Engine Brand | Cummins |
| Rated Power (kW) | 119 |
| Emission Standard | Tier 3 / China Stage III |
| Fuel Tank Capacity (L) | 200 |
