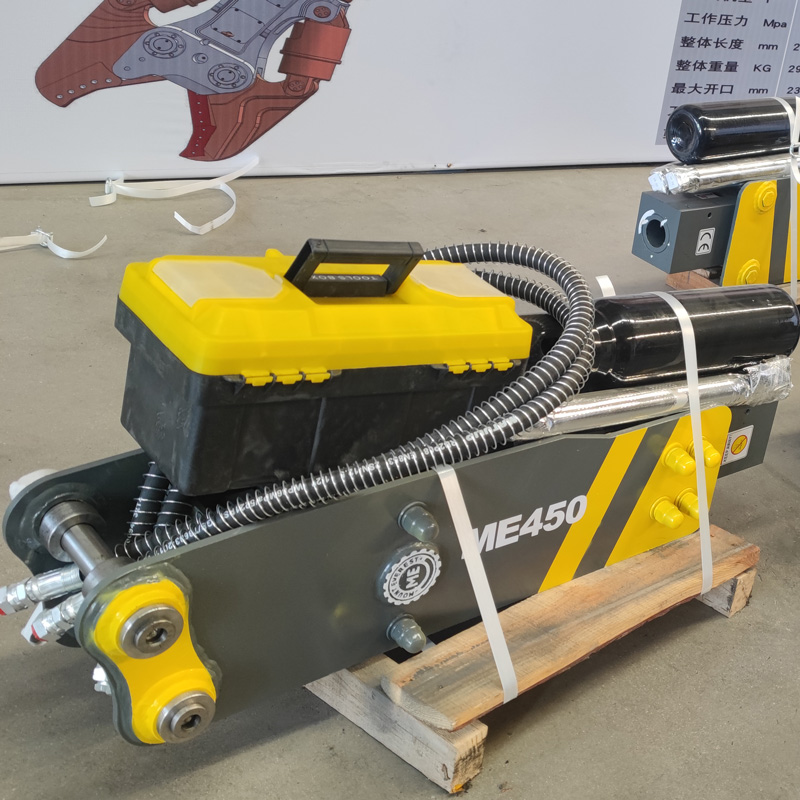

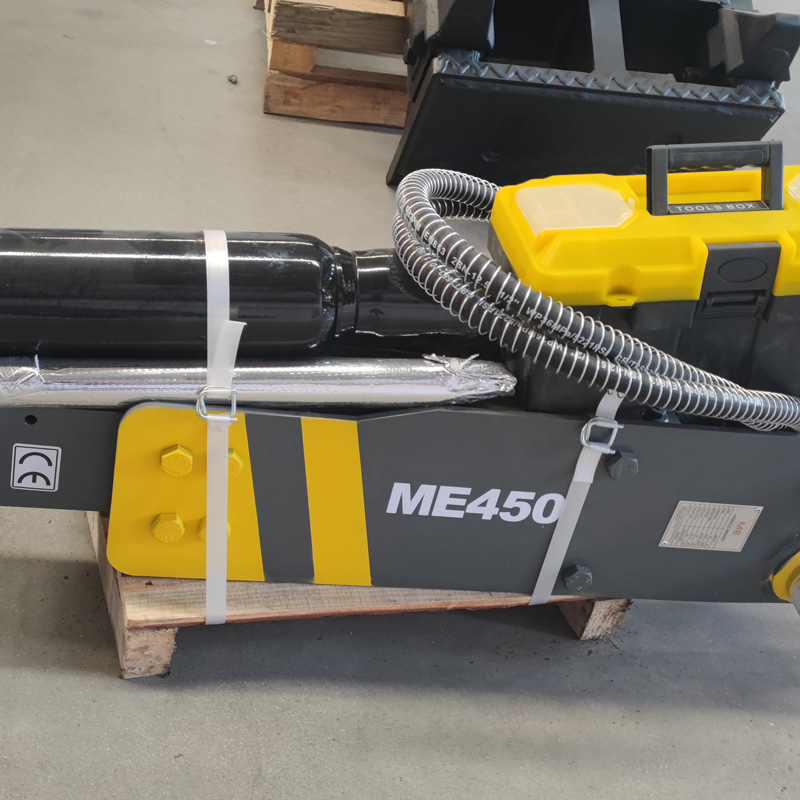

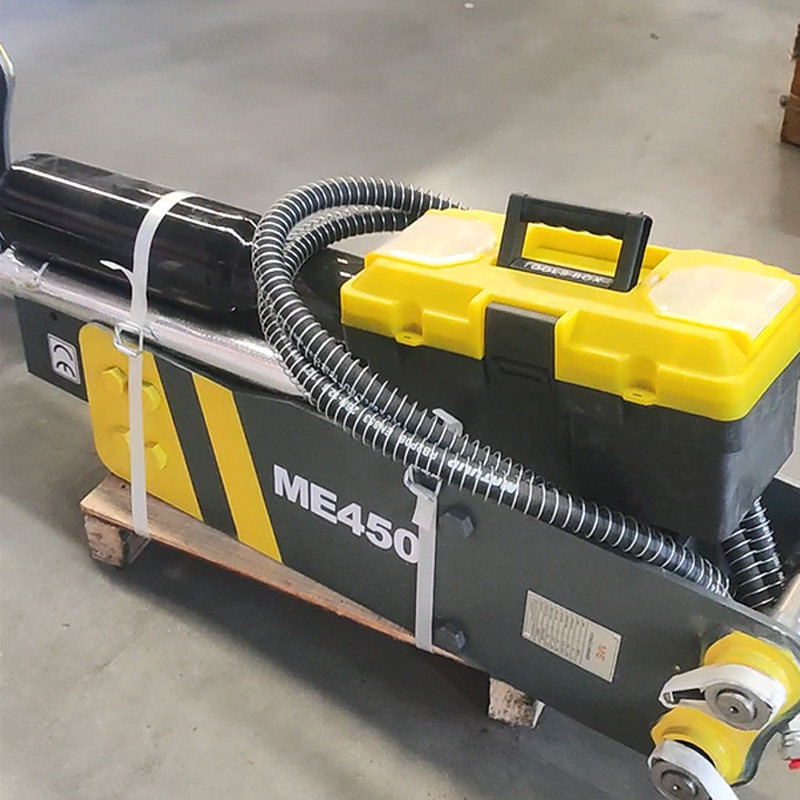

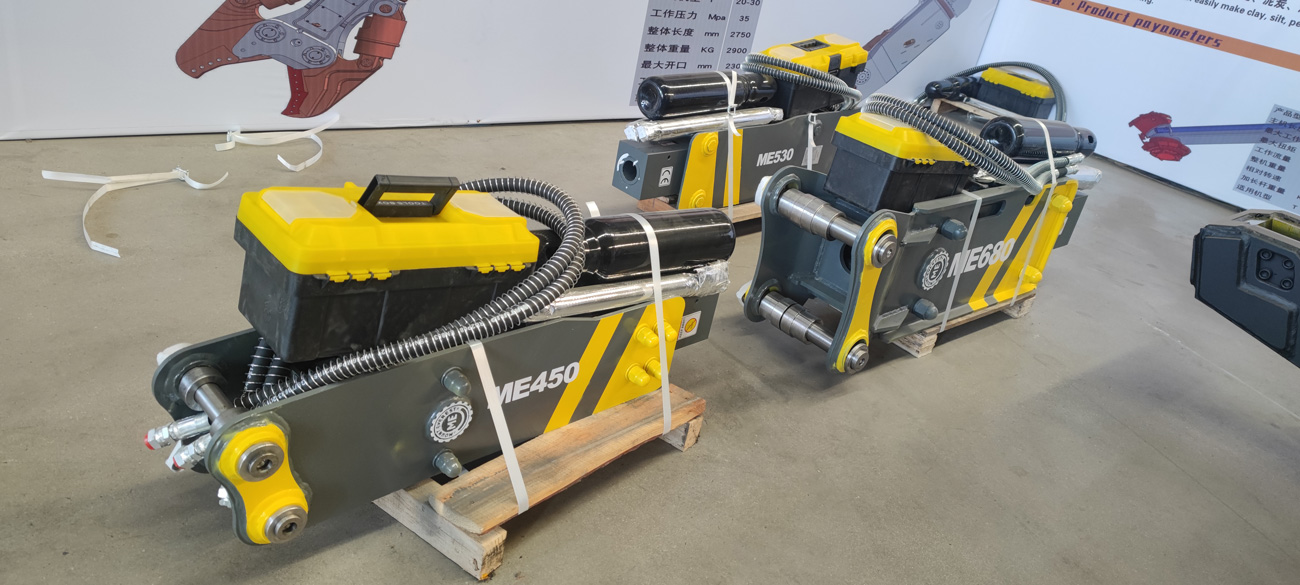

4 ton excavator hydraulic breaker
Hardened Through Bolt for Shock Resistance
The through bolt is crafted from hardened material to prevent accidental cracking, with a specialized design that shields the breaker from heavy impact shocks, ensuring stable operation under intense rock-breaking conditions.
Easy-Maintenance Valve Assembly
The valve assembly features a user-friendly structure that simplifies routine maintenance, effectively preventing oil cylinder deformation and extending the service life of core hydraulic components.
Stable Accumulator System
The accumulator assembly compensates for pressure fluctuations in the hydraulic circuit and eliminates pulsation, operating reliably with only nitrogen gas—no frequent refills are required, reducing operational complexity and downtime.
The ME400 hydraulic breaker is a robust, high-performance attachment designed for heavy-duty construction and demolition tasks. Built with hardened, shock-resistant components—including a durable through bolt, easy-maintenance valve assembly, and stable nitrogen-charged accumulator—it delivers efficient rock-breaking power via a high-energy conversion piston and a versatile heat-treated chisel. The reinforced front head further minimizes vibration and enhances operational stability, while its compact specifications (95 kg weight, 40 mm chisel diameter) make it perfectly suited for 0.8–2.5 ton carriers. Backed by strict quality assurance and factory-direct pricing, the ME400 combines reliable performance and cost-effectiveness, making it an ideal choice for contractors seeking a durable, high-value hydraulic breaker solution.
High-Efficiency Piston Energy Conversion
The piston efficiently converts kinetic energy into powerful hammering force, which is directly transmitted to the chisel to break rock with exceptional speed and effectiveness, boosting work productivity.
Reinforced Front Head Support
The front head provides full structural support for the entire breaker, equipped with a thrust ring and bushing to absorb chisel vibrations, minimizing operational shake and ensuring smooth, stable performance.
Versatile Heat-Treated Chisel
The chisel undergoes specialized heat treatment for superior wear resistance, and can be customized into moil point, wedge, or blunt types to adapt to diverse rock-breaking and demolition applications.
Premium Quality & Factory-Direct Affordability
This breaker is manufactured under strict quality control standards, using durable materials to guarantee long-term reliability. We offer direct factory pricing with no middleman markup, delivering exceptional value—top-tier performance at a cost-effective price.
ME450 Hydraulic Breaker Detail Table
| Hydraulic Breaker Model 45 - Technical Specifications | |
|---|---|
| Model | 45 |
| Weight (kg) | 130 |
| Length (mm) | 1070 |
| Required Oil Flow (L/min) | 20-30 |
| Operating Pressure (kg/cm²) | 90-120 |
| Impact Rate (b.p.m.) | 700-1200 |
| Hose Diameter (inch) | 1/2 |
| Chisel Diameter (mm) | 45 |
| Suitable Carrier (ton) | 1.2-3 |
