16Ton 18ton 20ton 26ton Single Drum Vibratory Roller
16-Ton Heavy-Duty Performance:
With an operating weight of 16,400 kg, the 166D delivers substantial compaction force for demanding applications, including highway construction, airport runways, and large-scale earthmoving projects.
High-Impact Compaction Force:
Generating a powerful centrifugal force of up to 330 kN, this machine ensures deep penetration and rapid achievement of density specifications, effectively handling thick lifts and cohesive materials.
Superior Static Linear Load:
An impressive static linearity of 464 N/cm provides excellent ground penetration, enabling the roller to crush and compact aggregates efficiently while achieving uniform density across the entire width.
The 166D Single Drum Vibratory Roller is a powerful 16.4-ton machine engineered for heavy-duty compaction applications on large-scale infrastructure projects. It combines a robust 129 kW Weichai engine with a high-output vibration system delivering up to 330 kN of centrifugal force and an impressive 464 N/cm static linear load. Featuring an advanced dual-stage vibration system with optimized amplitude and frequency settings, the 166D provides the versatility to handle everything from deep lift sub-base to surface finishing. With its superior gradeability, durable construction, and proven reliability, the 166D is the ideal choice for contractors seeking maximum productivity and consistent, high-quality results on demanding job sites.
Advanced Dual-Stage Vibration System:
The selectable dual amplitude (1.9 mm / 0.9 mm) and dual frequency (28 Hz / 33 Hz) settings allow operators to optimize compaction parameters for different material types—from deep fill applications to surface finishing.
Increased Power for Tough Jobs:
Powered by a robust 129 kW Weichai engine, this model delivers enhanced power output compared to lower-tonnage machines, ensuring reliable performance even in the most challenging soil conditions.

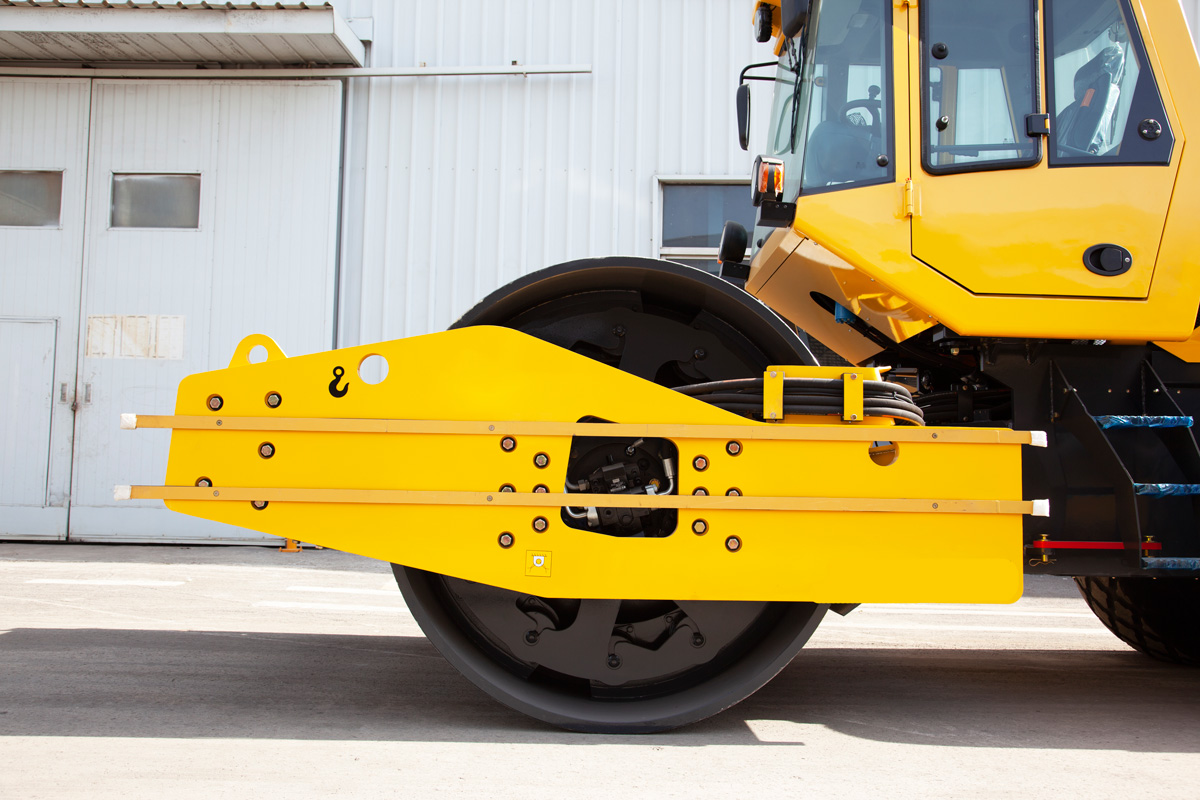

Optimized Drum Design:
The 2110 mm drum width combined with a 1540 mm diameter provides excellent coverage and impact force distribution, ensuring consistent compaction results with every pass.
Excellent Gradeability and Traction:
A 45% climbing capability ensures the machine can operate confidently on steep slopes and uneven terrain, maintaining traction and stability in demanding site conditions.
16.4 Ton Single Drum Vibratory Roller
| 166D Single Drum Vibratory Roller | |
|---|---|
| Basic Specifications | |
| Model | KS166D |
| Operation Weight (kg) | 16400 |
| Dimensions (L × W × H) (mm) | 6400 × 2300 × 3200 |
| Vibration System | |
| Static Linearity (N/cm) | 464 |
| Drum Width (mm) | 2110 |
| Drum Diameter (mm) | 1540 |
| Amplitude (mm) | 1.9 / 0.9 |
| Vibration Frequency (Hz) | 28 / 33 |
| Centrifugal Force (kN) | 330 / 225 |
| Performance | |
| Speed Range (km/h) | 0-9 |
| Climbing Capability (%) | 45 |
| Turning Radius (mm) | 6500 |
| Engine System | |
| Engine Brand | Weichai |
| Engine Power (kW) | 129 |
| Emission Standard | Tier 2 / China Stage II |
