26 Ton Fully hydraulic single drum roller
26-Ton Ultra-Heavy-Duty Class:
With a massive operating mass of 26,000 kg, the 267H is engineered for the most demanding large-scale projects, including dam construction, heavy rock fills, and major infrastructure development.
Maximum Compaction Power:
Generating an industry-leading centrifugal force of up to 420 kN, this machine delivers exceptional deep penetration and rapid density achievement, effectively handling the toughest materials and thickest lifts.
Superior Static Linear Load:
An outstanding static linear load of 584 N/cm provides unparalleled ground penetration, enabling the roller to crush and compact large aggregates and rocky materials in fewer passes.
The 267H Single Drum Vibratory Roller is a 26-ton ultra-heavy-duty machine designed for the world's most demanding compaction applications. It combines a powerful 147 kW Tier 4-compliant Shangchai engine with a high-output vibration system delivering up to 420 kN of centrifugal force and an exceptional 584 N/cm static linear load. Featuring a large 1650 mm diameter drum, advanced dual-stage vibration settings, and rugged heavy-duty construction, the 267H provides the ultimate solution for deep rock fills, dam construction, and major infrastructure projects. For contractors seeking maximum compaction power, environmental compliance, and uncompromising reliability, the 267H delivers unmatched performance on the toughest job sites.
High-Impact Dual-Stage Vibration:
The advanced dual amplitude (2.0 mm / 1.0 mm) and dual frequency (29 Hz / 34 Hz) settings allow operators to customize compaction parameters—from ultra-deep high-impact compaction to finishing and smoothing applications.
Large-Diameter Heavy-Duty Drum:
The 1650 mm drum diameter combined with 2180 mm width provides exceptional impact force distribution and coverage, ensuring consistent, uniform compaction across the entire working width.

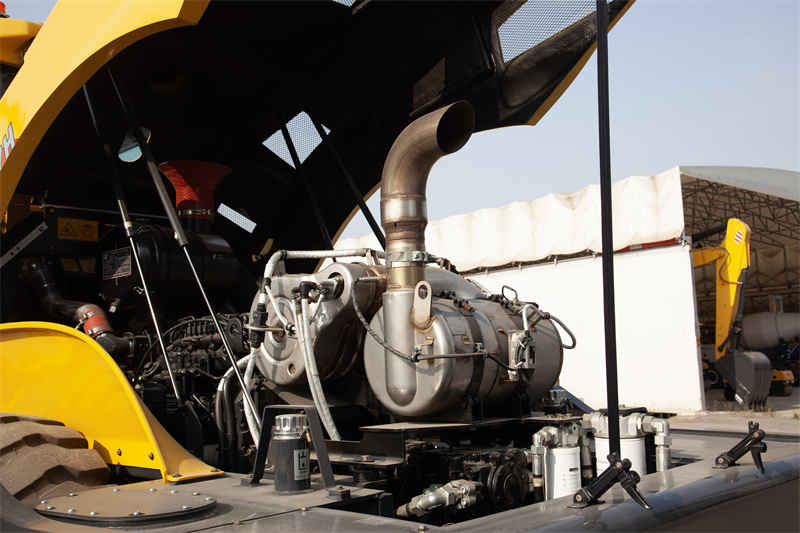

Clean and Efficient Tier 4 Power:
Powered by a 147 kW Shangchai engine meeting Tier 4 / China Stage IV emission standards, it combines high power output with advanced emissions control, reduced fuel consumption, and environmental responsibility.
Rugged Construction for Extreme Conditions:
Built with reinforced components and a heavy-duty frame, the 267H is designed to withstand the extreme stresses of high-impact compaction in the most challenging job site conditions.
26 Ton Fully hydraulic single drum roller detail table
| 267H Single Drum Vibratory Roller | |
|---|---|
| Basic Specifications | |
| Model | 267H |
| Operating Mass (kg) | 26000 |
| Dimensions (L × W × H) (mm) | 6750 × 2400 × 3300 |
| Vibration System | |
| Static Linear Load (N/cm) | 584 |
| Drum Width (mm) | 2180 |
| Drum Diameter (mm) | 1650 |
| Amplitude (mm) | 2.0 / 1.0 |
| Vibration Frequency (Hz) | 29 / 34 |
| Centrifugal Force (kN) | 420 / 290 |
| Performance | |
| Speed Range (km/h) | 0-9 |
| Climbing Capability (%) | 35 |
| Turning Radius (mm) | 7200 |
| Engine System | |
| Engine Brand | Shangchai |
| Engine Power (kW) | 147 |
| Emission Standard | Tier 4 / China Stage IV |
