L655G Pilot operated loader
Outstanding Operational Performance and High Load Capacity
The L655 is engineered for powerful performance with a substantial rated load capacity of 5,000 kg and a large 3.0 m³ bucket. Its superior power characteristics—maximum tractive force of 150 kN, breakout force of ≥160 kN, and a 30° gradeability—ensure excellence in heavy-duty digging, rapid truck loading, and operation on rough terrain. The combination of a compact turning radius (6,201 mm), optimal dump height (3,200 mm), and reach (1,264 mm) significantly enhances operational efficiency and maneuverability in confined spaces.
Powerful, Efficient, and Reliable Power Core

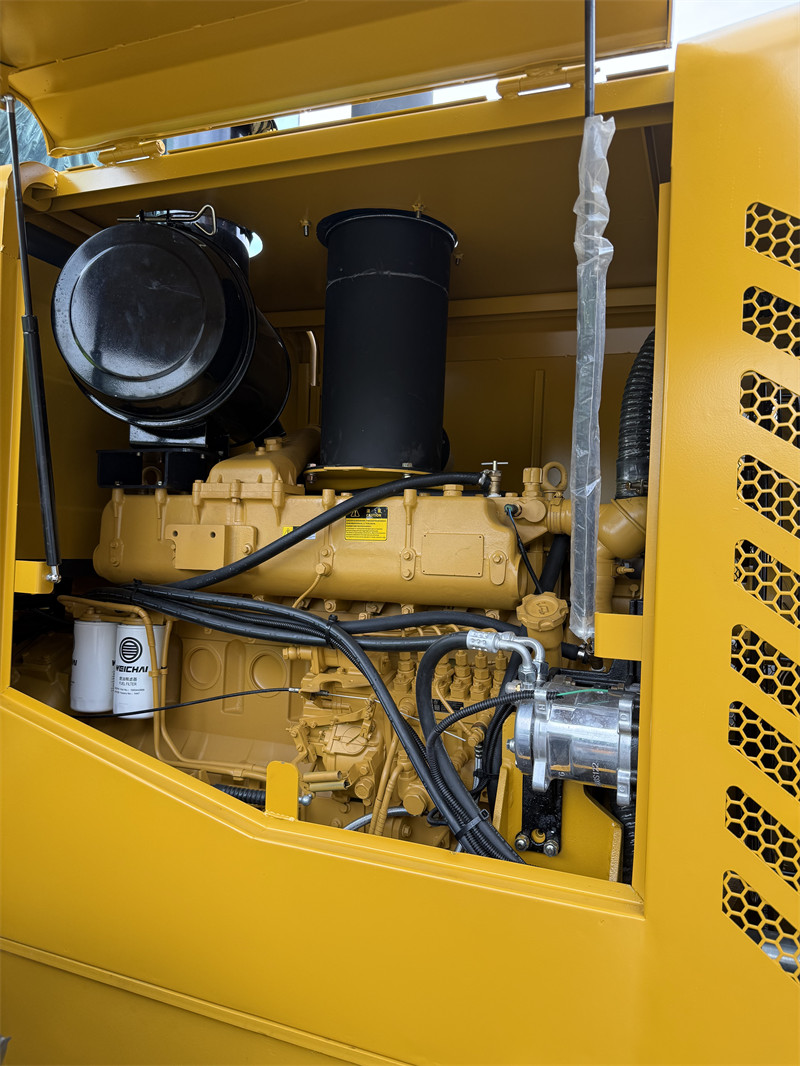

Equipped with a Euro II-compliant Weichai Steyr WD10G220E21 inline 6-cylinder engine, it delivers a robust 162 kW of power and 920 N·m of torque, ensuring ample power for demanding tasks. Its fuel-efficient design, with minimum consumption as low as 215 g/kW·h, translates to lower operating costs and enhanced productivity.
The L655 Loader stands out as a highly capable and efficient 5-ton machine designed to maximize productivity. Its core advantages lie in combining robust performance (high load/breakout force) with operational efficiency (fast hydraulics, smooth transmission). Key features like a powerful and fuel-saving engine, a stable chassis, reliable braking, and an optimized tire setup ensure it delivers reliable performance, lower cost of operation, and enhanced safety across various material handling and earthmoving applications.
Smooth and Efficient Power Transmission System
The drivetrain features an advanced single-stage, dual-turbine hydraulic torque converter paired with a planetary power-shift transmission (2 forward / 1 reverse). This system provides seamless gear changes, smooth power delivery, and a high travel speed of up to 38 km/h, enabling rapid cycle times and efficient movement across the job site.
Stable Chassis for Superior Traction and Durability
The robust chassis, with a 2,920 mm wheelbase and 2,260 mm wheel tread, provides exceptional stability during heavy lifting and high-speed travel. The drive axle system, utilizing bevel gear and planetary reductions, ensures reliable power transfer to the wheels. A generous 480 mm ground clearance allows it to tackle uneven and challenging terrains with confidence.

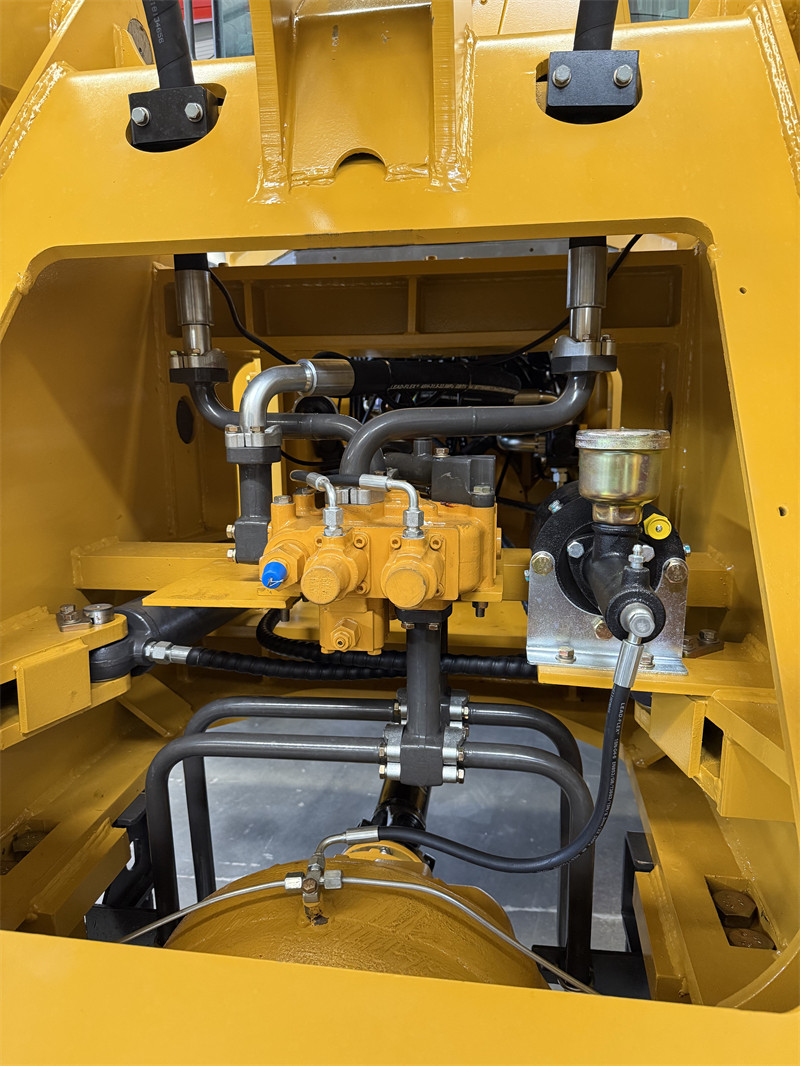

High-Efficiency Hydraulic System for Fast Cycle Times
The high-performance hydraulic system operates at 18 MPa, delivering responsive and powerful implement control. It achieves quick boom lifting (approx. 6.0 seconds) and a short total cycle time (approx. 11.0 seconds), directly boosting productivity. Features like automatic bucket leveling simplify operation, improve accuracy, and reduce operator fatigue.
Safe and Reliable Dual Braking Systems
Safety is ensured by a comprehensive braking setup. The service brake system uses reliable air-over-hydraulic disc brakes on all four wheels for effective and controlled stopping power under load. A separate manual disc parking brake provides secure holding when the machine is stationary.
Optimized Tire Configuration for Traction and Flotation
Fitted with large 23.5-25 tires, the L655 provides excellent ground contact and flotation on soft surfaces. The recommended tire pressures (0.4 MPa front, 0.35 MPa rear) are optimally set for balanced weight distribution, superior traction, and improved tire life under typical load conditions.
L655 Loader detail table
| Item | Value |
|---|---|
| Performance | |
| Model | 655G |
| Rated load | 5000 kg |
| Overall weight | 15500 kg |
| Rated bucket capacity | 3.0 m³ |
| Maximum tractive force | 150 kN |
| Maximum breakout force | ≥160 kN |
| Maximum grade ability | 30° |
| Maximum dump height | 3200 mm |
| Maximum dump reach | 1264 mm |
| Overall dimension (L×W×H) | 7900 × 3024 × 3460 mm |
| Minimum turning radius | 6201 mm |
| Engine | |
| Make / Model | Weichai Steyr WD10G220E21 |
| Type | Euro II, In-line 6-cylinder, 4-stroke |
| Bore × Stroke | 126 × 130 mm |
| Rated power | 162 kW / 2400 rpm |
| Maximum torque | 920 N·m |
| Min. fuel consumption | ≤215 g/kW·h |
| Transmission System | |
| Torque converter type | Single-stage, four-element, dual-turbine hydraulic converter |
| Gearbox mode | Planetary power shift |
| Gears | 2 forward / 1 reverse |
| Maximum speed | 38 km/h |
| Drive Axles | |
| Main reduction type | Bevel gear single-stage reduction |
| Wheel reduction type | Planetary single-stage reduction |
| Wheel base | 2920 mm |
| Wheel tread | 2260 mm |
| Ground clearance | 480 mm |
| Hydraulic System | |
| System working pressure | 18 MPa |
| Boom lifting time | 5.95 ± 0.2 s |
| Total cycle time | 10.95 ± 0.5 s |
| Fuel tank capacity | 265 L |
| Automatic bucket leveling | Yes |
| Brake System | |
| Service brake | Air-over-hydraulic disc brake (4 wheels) |
| Parking brake | Manual disc brake |
| Tyre | |
| Specification | 23.5-25 |
| Front tyre pressure | 0.4 MPa |
| Rear tyre pressure | 0.35 MPa |
