21 Ton Fully Hydraulic Tyred Roller With Driver's Cab
Stable compaction quality:
Consistent ground contact and uniform pressure distribution ensure high-quality, repeatable compaction results across the entire working width.
Excellent sealing performance:
Pneumatic tire compaction helps improve surface sealing and density, reducing water penetration and extending pavement service life.
Low vibration & low impact:
Gentle compaction action minimizes vibration impact on adjacent structures and improves working comfort for operators.
The P206 Fully Hydraulic Pneumatic Tyred Roller integrates the high efficiency of a full hydraulic drive system with the superior compaction characteristics of pneumatic tires, providing a reliable, efficient, and pavement-friendly compaction solution. With uniform compaction, strong adaptability, adjustable working parameters, and stable performance, it excels in new road construction, pavement maintenance, leveling works, and various foundation treatment projects. As a highly reliable and versatile piece of compaction equipment, the P206 effectively improves construction quality, extends service life of road structures, and serves as an essential machine for modern road and infrastructure construction.
High construction efficiency:
Wide compaction width and stable travel performance reduce overlapping passes and boost overall job-site productivity.
Outstanding climbing performance:
Strong power reserve and reliable traction enable stable operation on slopes up to 20%, ensuring safety and continuity in sloped projects.
Easy maintenance & high durability:
Rational structural design and reliable key components reduce daily maintenance workload and extend machine service life.

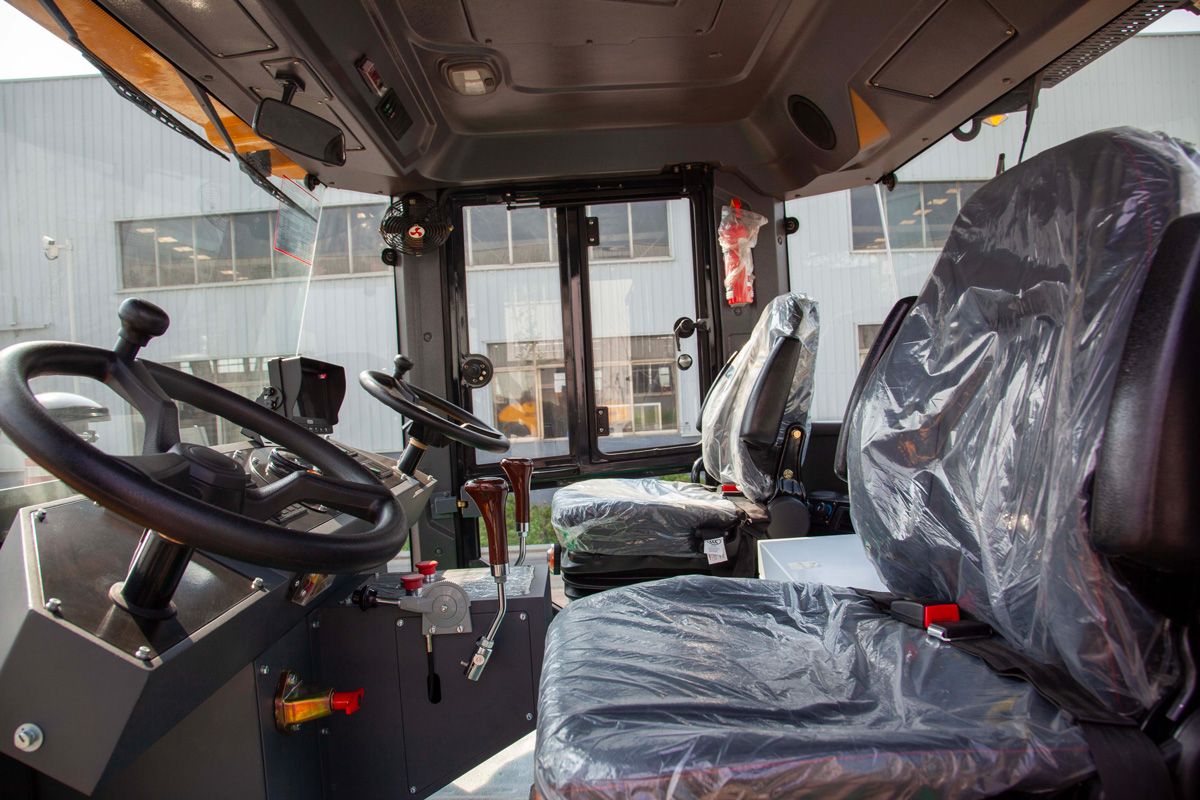

Comfortable operating environment:
Ergonomic controls, stable driving performance, and low vibration create a fatigue-resistant operating experience.
Safe & reliable operation:
Stable chassis, responsive hydraulic control, and reliable braking performance enhance safety during construction and maneuvering.
Wide application range:
Suitable for base courses, subbases, asphalt layers, and landfill compaction, making it highly versatile for road and municipal projects.
Energy-saving & environmentally friendly:
Equipped with a low-consumption Weichai engine meeting Tier 2/China Stage II emissions, delivering strong power with reduced fuel consumption.
21 Ton Fully Hydraulic Pneumatic Tyred Roller Detail Table
| P206 Fully Hydraulic Pneumatic Tyred Roller | |
|---|---|
| Basic Specifications | |
| Model | P206 |
| Maximum Operation Weight (kg) | 20000 |
| Dimensions (L × W × H) (mm) | 5200 × 2270 × 3350 |
| Compaction System | |
| Ground Pressure (kPa) | 200-440 |
| Compaction Width (mm) | 2270 |

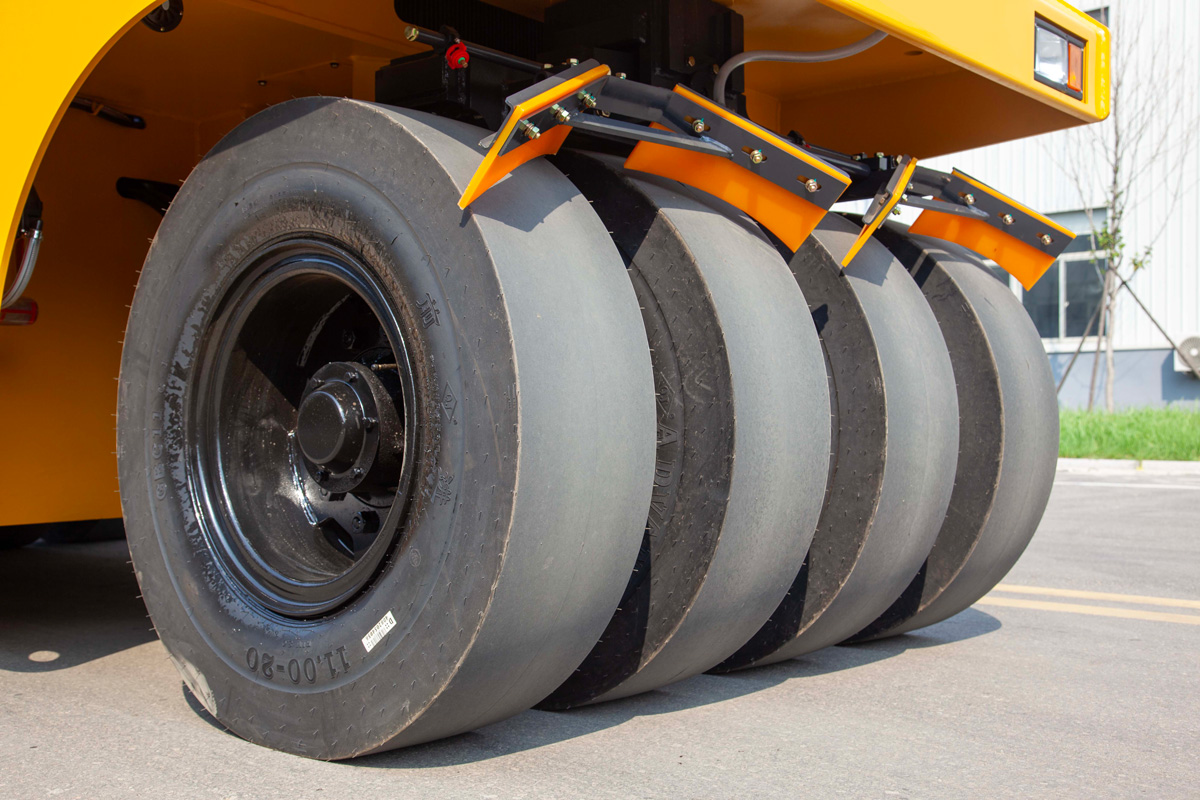

| Tyre Specification (Matte) | 11.00-20 |
| Tyre Quantity (Front/Rear) | 4 / 5 |
| Performance | |
| I Speed (km/h) | 0-7 |
| II Speed (km/h) | 0-15 |
| Climbing Capability (%) | 20 |
| Turning Radius (mm) | 7500 |
| Engine System | |
| Engine Brand | Weichai |
| Engine Power (kW) | 105 |
| Emission Standard | Tier 2 / China Stage II |
