16 Ton 20TON 30ton tire Roller whit hydrulic motor

The P166 Fully Hydraulic Pneumatic Tyred Roller is a versatile and powerful 16-ton machine designed for high-quality compaction of asphalt and granular base materials. Its fully hydraulic system provides smooth, precise control and flexible operation, while the adjustable ground pressure (200-400 kPa) allows it to adapt to a wide range of applications. The unique 4-front and 5-rear tyre configuration delivers uniform pressure distribution and the essential kneading action required to seal and density asphalt surfaces without causing damage. With strong adaptability to uneven ground, adjustable compaction depth through tyre pressure control, and reduced surface damage compared to steel wheel rollers, the P166 offers an efficient and road-friendly compaction solution. Powered by a reliable 105 kW Weichai engine, this machine is the ideal choice for contractors seeking a durable, high-performance pneumatic tyred roller for new road construction, pavement maintenance, and leveling projects.

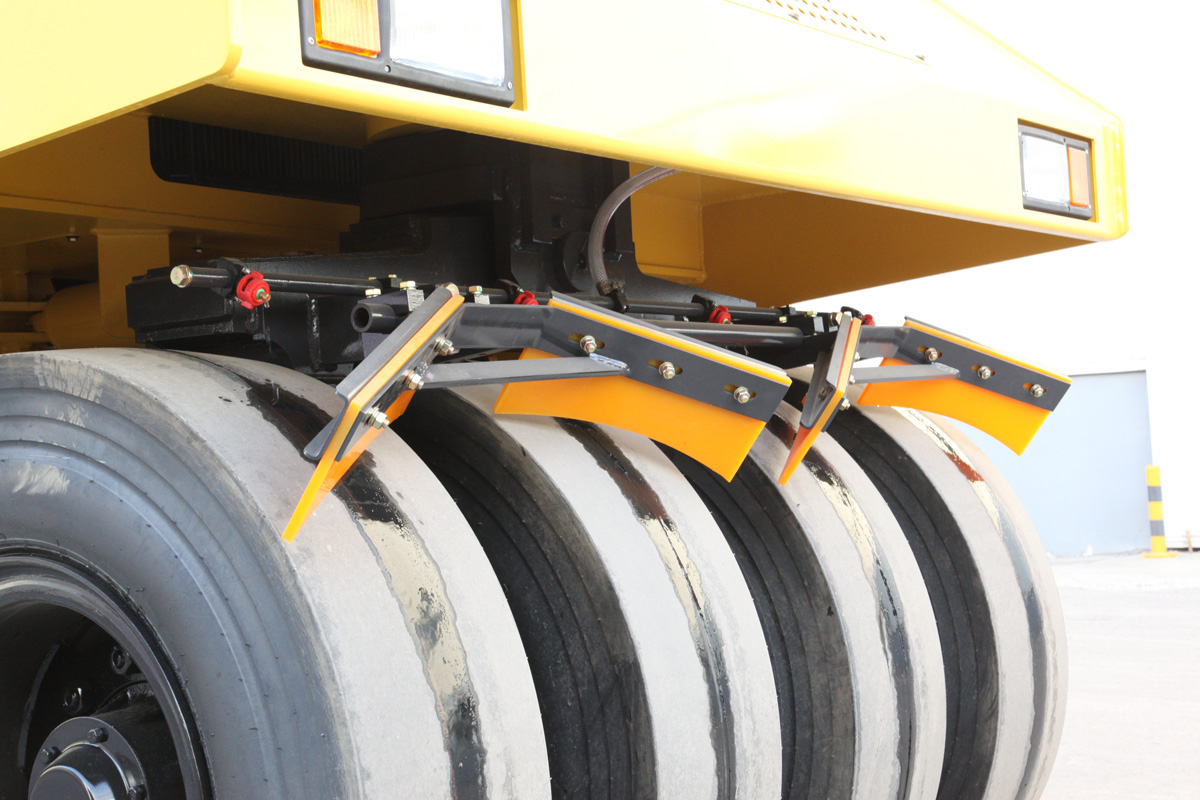

Superior Kneading Action with 9-Tyre Configuration:

The unique 4 front / 5 rear tyre arrangement provides complete coverage and the renowned "kneading" action of pneumatic rollers. This action effectively seals the surface, increases density, and prevents material tearing during asphalt compaction.

Uniform Compaction Effect:

 Multiple pneumatic tires distribute pressure evenly across the entire working width, effectively avoiding road damage caused by uneven compaction. This is particularly critical during asphalt surface compaction, where it protects the road from being destroyed.

Reduced Surface Damage:

 Compared with steel drum rollers, the pneumatic tyres cause significantly less damage to the road surface during operation. This makes the P166 especially suitable for final compaction of asphalt pavements, ensuring smoothness and structural integrity.

Adjustable Compaction Depth:

 By simply adjusting the air pressure of the tires, operators can change the compaction depth and compressive strength. This provides greater working flexibility and the ability to adapt to different engineering requirements without changing machines.

Strong Adaptability to Ground Conditions:

 The pneumatic tires can adapt to different ground conditions, enabling effective compaction operations even on uneven surfaces or weak foundations. This makes the P166 suitable for a wider range of construction environments.

Flexible and Precise Operation:

 The application of the full hydraulic system makes the tire roller exceptionally flexible and easy to control, especially during steering and directional adjustments. Operators can accurately complete compaction tasks with precision.

Dual Speed Ranges for Work and Travel:

 Two speed ranges—0-7 km/h for high-quality compaction work and 0-15 km/h for efficient job site relocation—allow the operator to match the machine's speed perfectly to the task at hand.

Full Compaction Width Coverage:

A compaction width of 2270 mm combined with overlapping tyre patterns ensures uniform density across the entire pass, eliminating weak strips and producing a consistent, high-quality finish.

Reliable and Proven Powertrain:

Powered by a durable 105 kW Weichai engine meeting Tier 2 / China Stage II standards, it combines reliable performance with easy serviceability and excellent fuel economy.

16 Ton Fully Hydraulic Pneumatic Tyred Roller Detail Table
