16 Ton Fully Hydraulic tire Roller With Driver's Cab

The P166 Fully Hydraulic Pneumatic Tyred Roller is a high-performance 16-ton machine purpose-built for achieving superior finishes on asphalt and granular materials. Its responsive fully hydraulic drivetrain ensures effortless control, while the adjustable ground pressure (200-400 Pa) provides exceptional task versatility. The distinct 4+5 pneumatic wheel arrangement delivers uniform force distribution and the essential kneading action required to produce tight, sealed surfaces without the damage associated with steel drums. Combining strong adaptability to rough terrain, depth control through tire pressure management, and a gentle touch on fresh asphalt, the P166 represents an efficient and surface-conscious compaction solution. Powered by a dependable 105 kW Weichai engine, it stands as a top choice for contractors requiring a durable, flexible, and high-quality pneumatic roller for road construction, surface finishing, and maintenance grading.

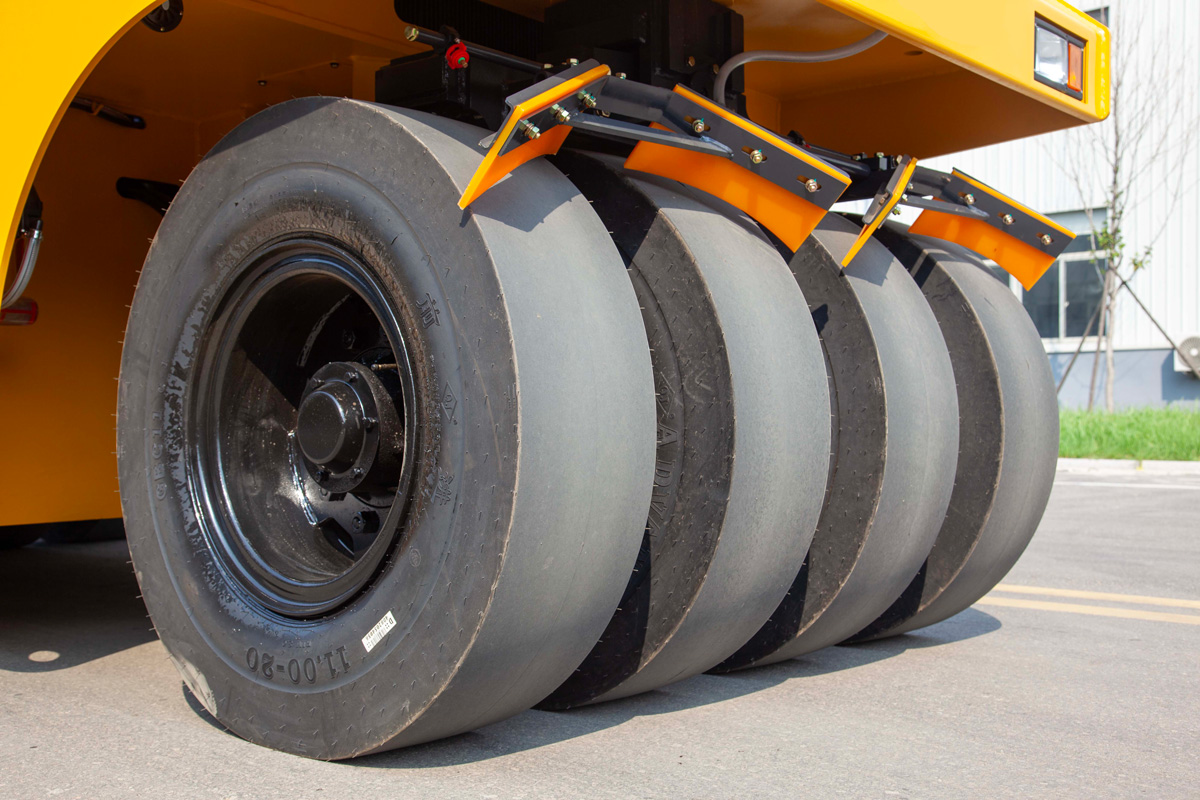

Optimized 9-Wheel Configuration:

The specialized arrangement of 4 front and 5 rear pneumatic wheels ensures full coverage across the compaction path. This design generates the distinctive kneading effect that seals surfaces, boosts density, and prevents material cracking or displacement.

Even Load Distribution:

The multiple pneumatic tires excel at spreading pressure uniformly across the entire 2270 mm working width. This eliminates weak spots and protects the mat integrity, a crucial benefit during critical asphalt surface courses.

Asphalt-Friendly Compaction:

Unlike rigid steel drums, the pneumatic tires impart a gentle yet effective force, minimizing surface marking and aggregate damage. This characteristic makes the P166 ideal for final finishing passes, ensuring a smooth, intact pavement.

Variable Compaction Depth via Tire Pressure:

Operators can easily modify compaction depth and energy by adjusting tire inflation pressure. This feature offers tremendous on-site flexibility, allowing the machine to tackle varying specifications without requiring different equipment.

Excellent Terrain Adaptability:

The flexible nature of the pneumatic tires allows the roller to maintain effective compaction on uneven ground, soft bases, or coarse surfaces where rigid drums might struggle, expanding its usability across challenging job sites.

Hydraulic Precision Maneuvering:

The responsive full hydraulic system grants exceptional control, particularly during tight turns and frequent directional changes. This allows operators to execute compaction patterns with pinpoint accuracy.

Two-Stage Speed Versatility:

The machine features distinct speed ranges: 0-7 km/h dedicated to meticulous compaction work, and 0-15 km/h for rapid repositioning between job sites, optimizing both quality and logistics efficiency.

Complete Pass Coverage:

The 2270 mm compaction width, combined with carefully overlapped wheel patterns, guarantees consistent density from edge to edge. This eliminates transitional weak zones and delivers a professionally finished surface.

Durable and Efficient Powertrain:

The P166 is driven by a robust 105 kW Weichai engine, meeting Tier 2 / China Stage II norms. It offers a trusted blend of long-term reliability, straightforward maintenance, and competitive fuel consumption.

16 Ton Fully Hydraulic Pneumatic Tyred Roller Detail Table
