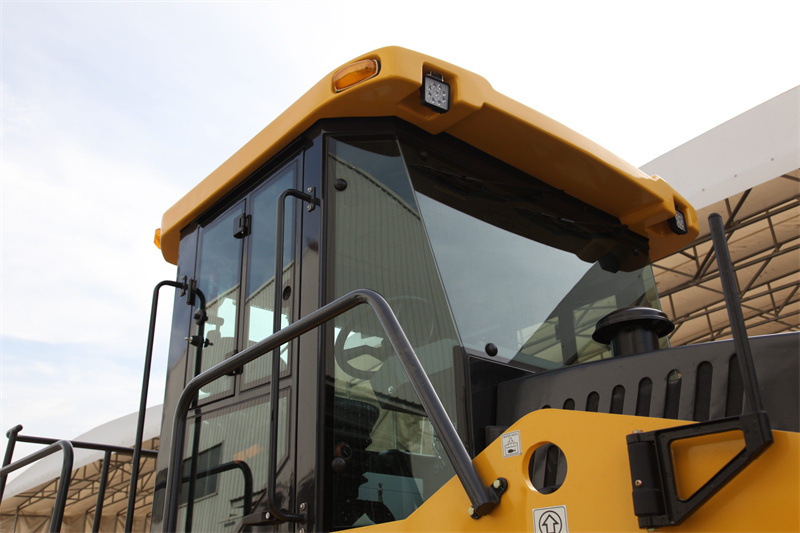

30 Ton Fully Hydraulic Tyred Roller with driver's cab
Higher operating weight for deeper compaction:
With a 30-ton operation weight, it achieves greater compaction density and deeper layer compaction for heavy-duty road projects.
Wider compaction width for higher efficiency:
A 2750 mm compaction width reduces overlapping passes and significantly improves daily construction output.
Optimized tire layout for full coverage:

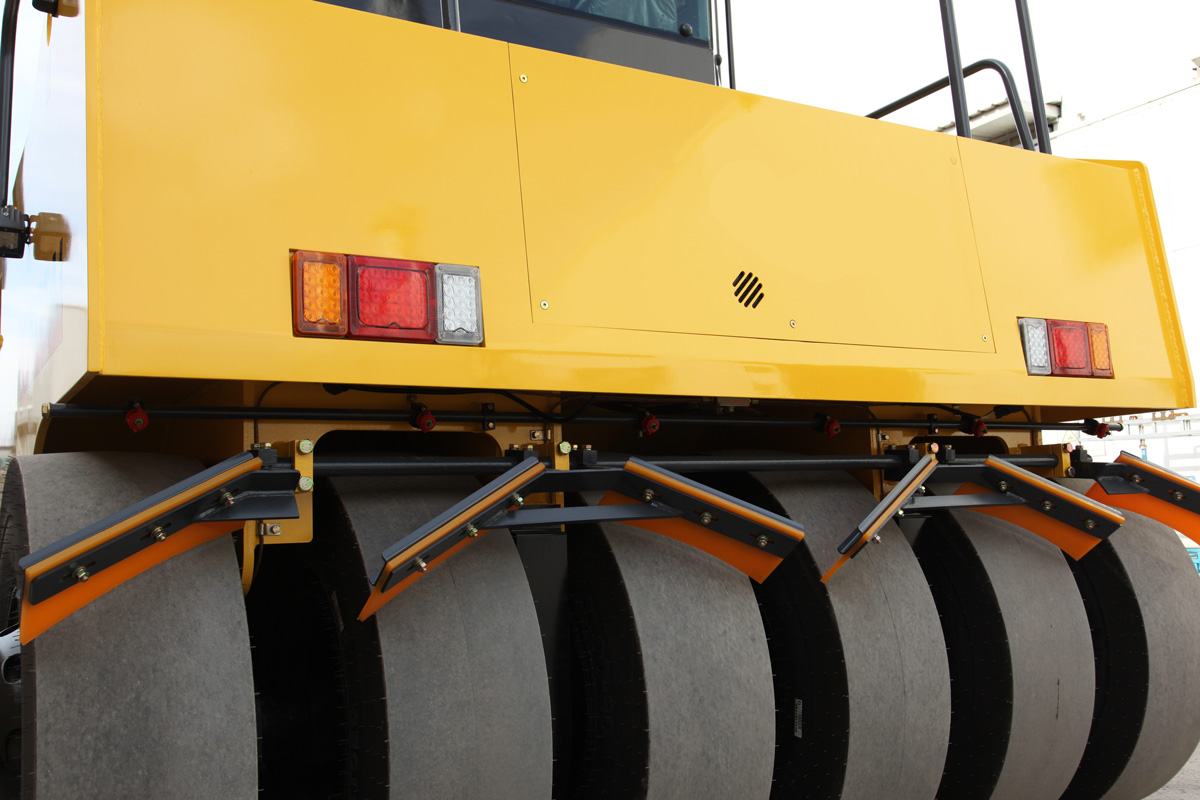

The 5-front & 6-rear tire arrangement ensures full-width compaction without missing areas or uneven density.
The P306H-2 Fully Hydraulic Pneumatic Tyred Roller integrates a heavy-duty 30-ton structure, high-power engine, and advanced full hydraulic system to deliver superior compaction performance. It features uniform pressure distribution, wide compaction width, adjustable working parameters, and excellent adaptability, while minimizing damage to asphalt surfaces. Ideal for highways, municipal roads, airport runways, and large-scale infrastructure projects, this roller combines efficiency, reliability, and pavement-friendly operation. As a professional compaction solution for modern construction, the P306H-2 effectively improves road quality, extends service life, and serves as essential equipment for large and medium-sized engineering projects.
Stronger power reserve:
Equipped with a 140 kW Weichai engine, it provides stable power output even under heavy load and tough working conditions.
Higher-grade emission compliance:
Meets Tier 3 / China Stage III emission standards, making it more environmentally friendly and suitable for global and urban projects.
Stable high-pressure compaction:
Adjustable ground pressure up to 460 kPa ensures strong compacting ability for both base courses and asphalt surfaces.
Enhanced structural durability:
Heavy-duty frame design and reinforced components improve reliability and extend service life under long-term heavy use.
Superior traction and stability:
Optimized weight distribution and tire configuration deliver stable driving and strong anti-slip performance.
Precise hydraulic control:
Full hydraulic drive system enables smooth starting, braking, and steering, reducing operator fatigue and improving accuracy.
Wide application for heavy projects:
Specially designed for highways, airports, ports, and large-scale infrastructure where high compaction quality is required.
31 Ton Fully Hydraulic Tyred Roller Detail Table
| 31 Ton Fully Hydraulic Pneumatic Tyred Roller | |
|---|---|
| Basic Specifications | |
| Model | P306H-2 |
| Maximum Operation Weight (kg) | 30000 |
| Dimensions (L × W × H) (mm) | 5200 × 2870 × 3380 |
| Compaction System | |
| Ground Pressure (kPa) | 250-460 |
| Compaction Width (mm) | 2750 |
| Tyre Specification (Matte) | 11.00-20 |
| Tyre Quantity (Front/Rear) | 5 / 6 |
| Performance | |
| I Speed (km/h) | 0-7 |
| II Speed (km/h) | 0-14 |
| Climbing Capability (%) | 20 |
| Turning Radius (mm) | 9000 |
| Engine System | |
| Engine Brand | Weichai |
| Engine Power (kW) | 140 |
| Emission Standard | Tier 3 / China Stage III |
